Plate Pak Heater

Key Advantages

  • High Thermal Efficiency
  • Low Fouling
  • Compact Size
  • Small Footprint
  • Easy Maintenance
  • Flexible Design / Expandable
  • Ideal for Heat Recovery
  • Close Approach Temperatures
  • Low Overall Cost
  • Online Reliability

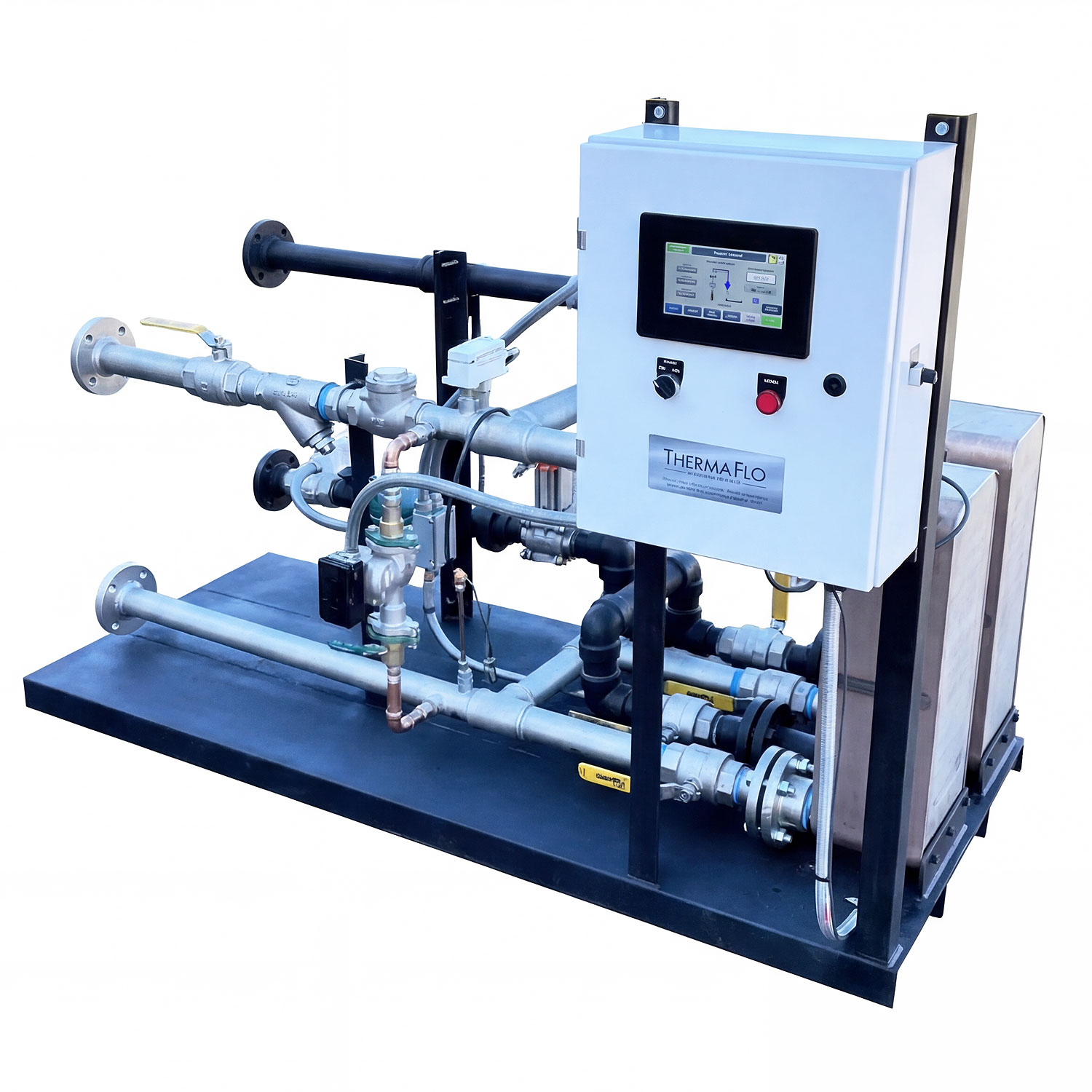

ThermaFlo Plate Pak Heater System

Complete Plate and Frame Heat Exchanger Packages Systems specifically designed for domestic water, building heat and process applications.

ThermaFlo’s Plate Pak Heater system is fully piped and tested prior to shipment. Accurate temperature control is achieved by using V-Ball Control Valve with 100:1 Flow Turn and the EC-800 Electronic Control System. Over-temperature safety built into each unit including a double safety on domestic water applications. Communication to central automation is via standard Modbus port and remote temperature set point and alarm alert is also available. Touch Screen user interface and Ethernet port option available. ASME Code rated 150 psi heat exchanger single wall or double wall bolted and brazed construction in Design Pressures from 150 to 400 PSIG

  • ASME Code Construction & U-Stamp
  • National Board registered
  • ARI Certified to Standard 400
  • Free-Flow, Welded Cassette & Double Wallplates
  • Copper or Nickel Brazed AISI 316 SS units

Product Literature and Submittals

Consult factory for certified dimensions and construction submittal, the drawings on the website are for reference only.
