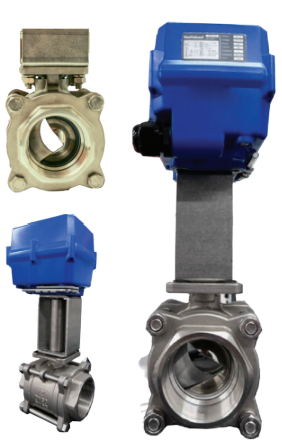

The Thermaflo JVV V Ball Series Control Valve is designed for high speed 100% duty for temperature, pressure and level control applications. Specifically designed for steam, high-temperature hot water, and other rigorous control applications.
The equal percentage segmented V inner ball design provides the user with accurate control over a 300:1 flow turndown rangeability. Half the size and weight of any conventional globe control valve, the JVV is simple to install. The high-speed electronic actuator fails closed on power loss and totally eliminates air supply. The fully programmable actuator accepts 0-10V or 4-20 ma input control signal and can be split range controlled when required. The JVV Series high flow CVs reduces valve size, space and overall weight of any application in your piping system.
Product Literature and Submittals
Consult factory for certified dimensions and construction submittal, the drawings on the website are for reference only.
